Indoor Front Service LED Display
Indoor Front Service LED Display
640F2 LED display is a visually stunning produce, featuring a front service design for its LED modules, power supply and receiving card. It is the ideal solution for indoor fixed installation front service screens. We use Novastar receiving cards and processors. All Novastar products come with a 3 year warranty.

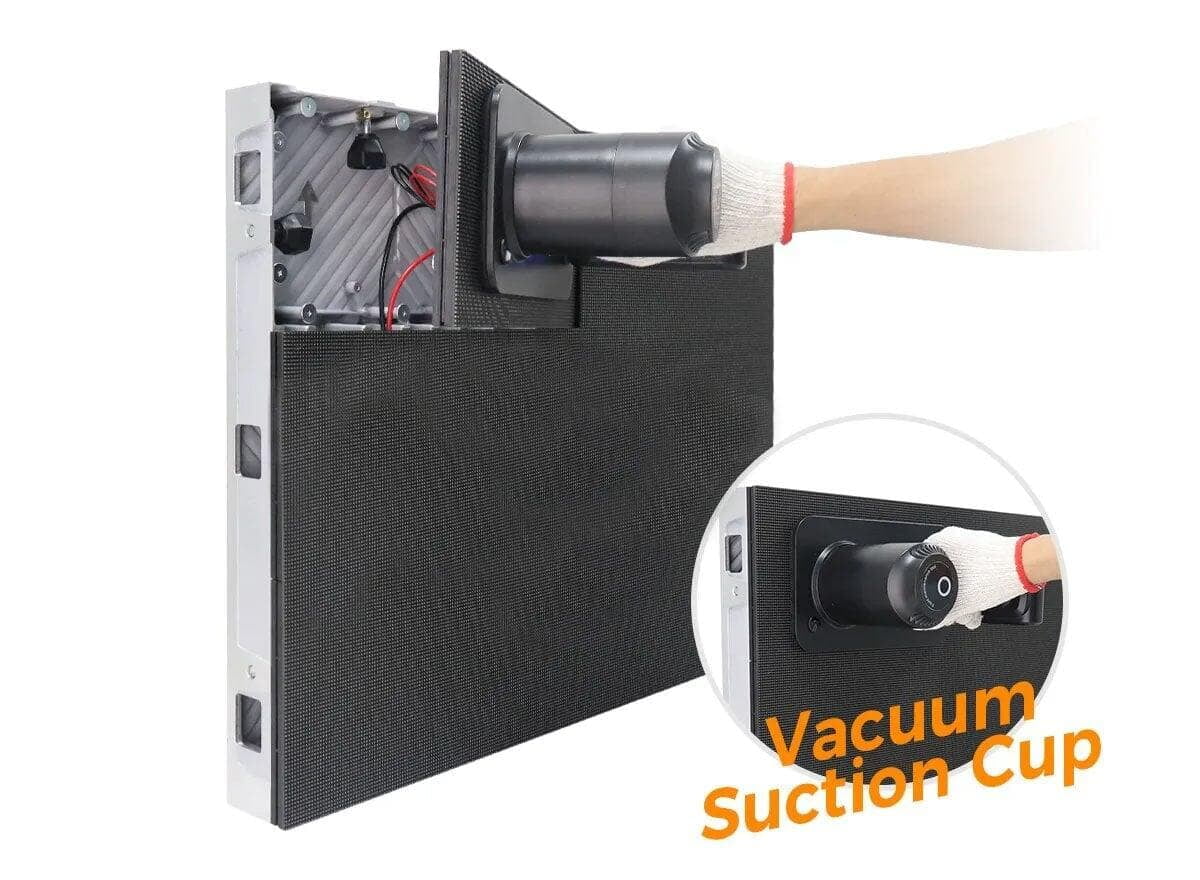

Full Front Service Design
The full front maintenance design of 640F2 series LED display allows for easy maintenance of the LED module, power supply, and receiving card from the front.
Full Front Service Design
The full front maintenance design of 640F2 series LED display allows for easy maintenance of the LED module, power supply, and receiving card from the front.

4:3 Ratio Cabinet Design
640F2 indoor front service LED Display is designed with 4:3 golden ratio,the cabinet size is 640*480mm.
Designed for a variety of 4:3 and 16:9 LED large screens.
4:3 Ratio Cabinet Design
640F2 indoor front service LED Display is designed with 4:3 golden ratio,the cabinet size is 640*480mm.
Designed for a variety of 4:3 and 16:9 LED large screens.

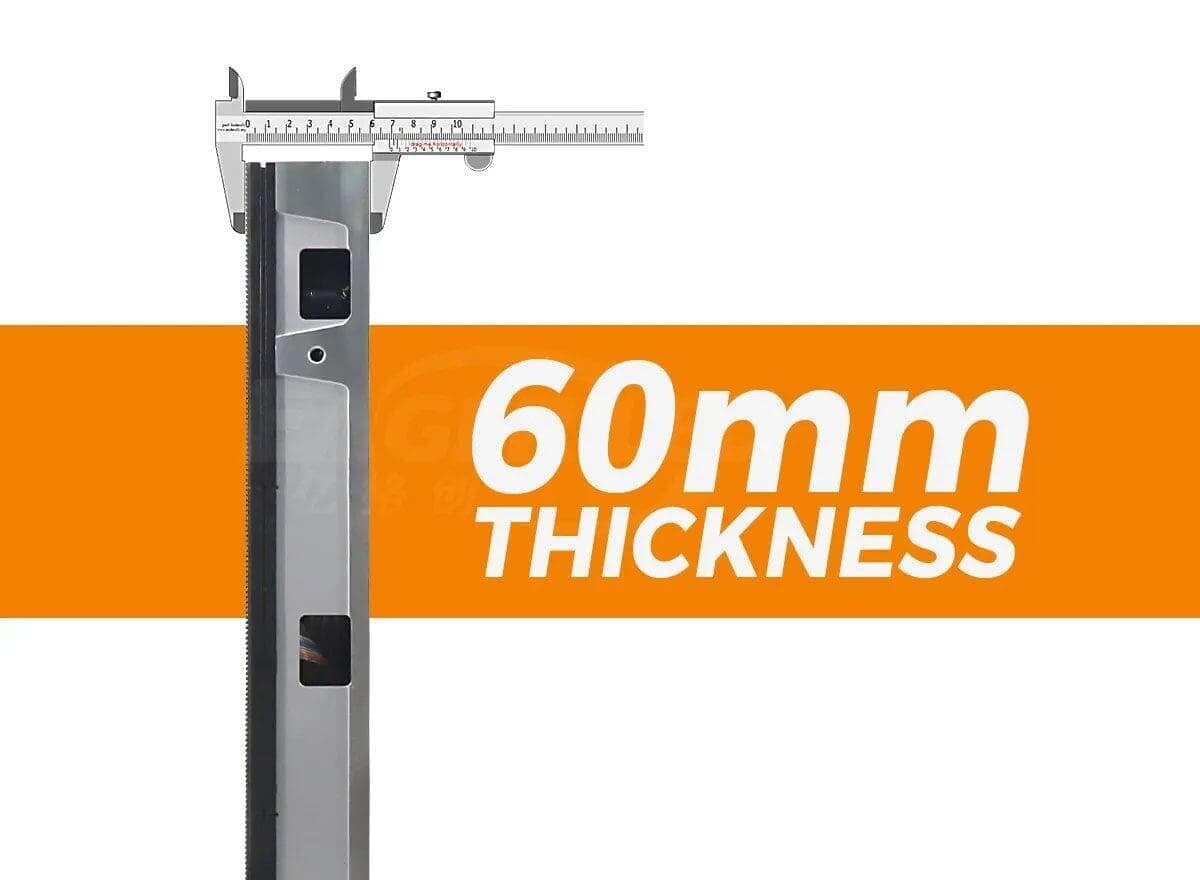

Ultra-Thin Cabinet
The thickness of 640F2 series LED display is only 60mm, very thin and light, and the weight is only 17.6 lbs, which is easy to install, assemble and disassemble.
Ultra-Thin Cabinet
The thickness of 640F2 series LED display is only 60mm, very thin and light, and the weight is only 17.6 lbs, which is easy to install, assemble and disassemble.

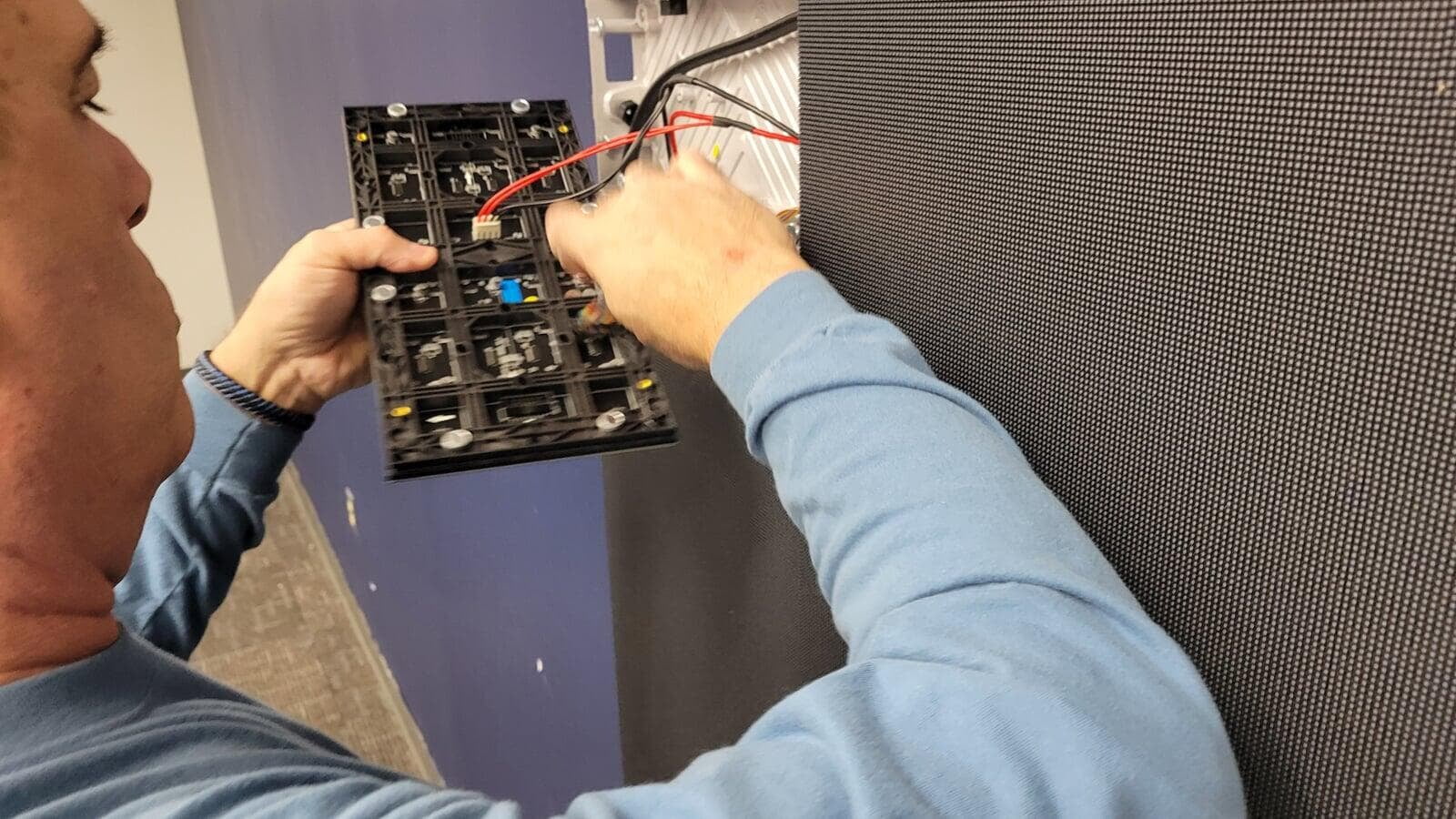

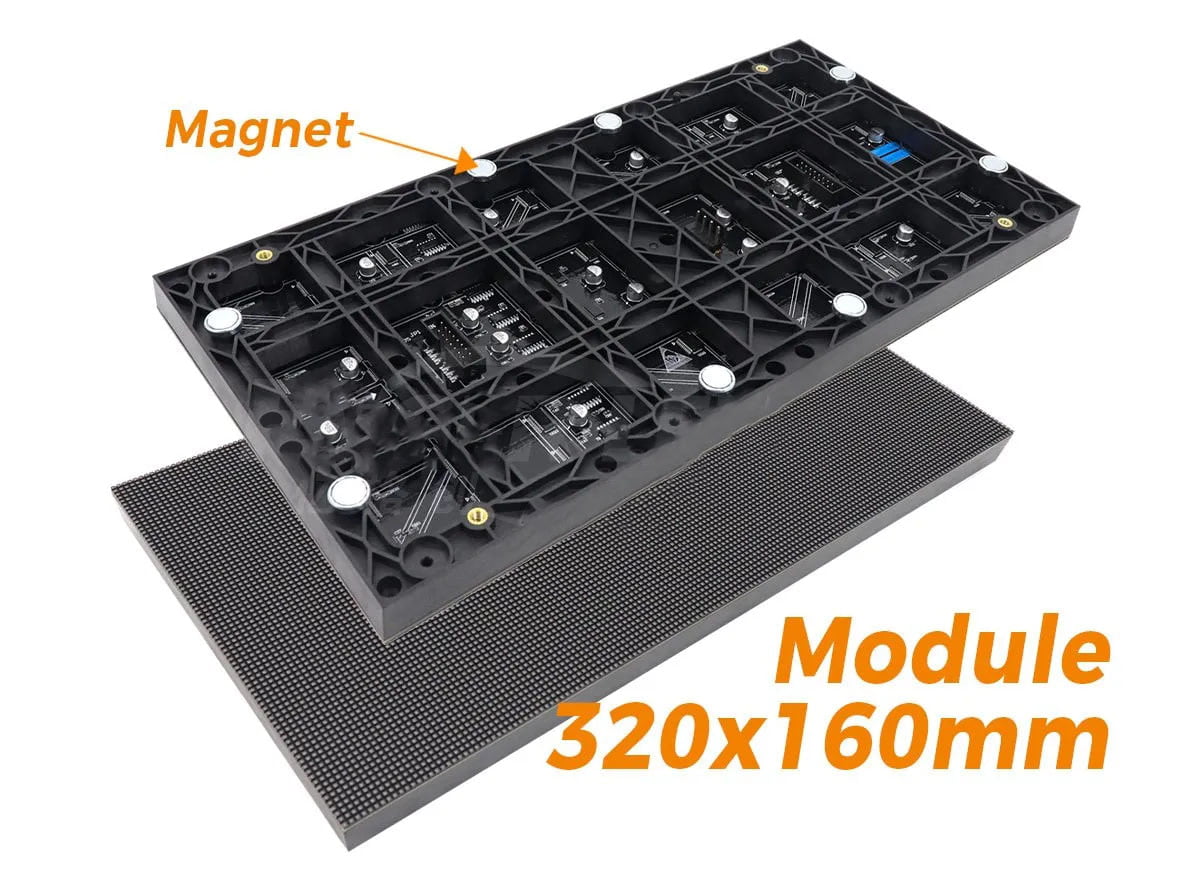

Suitable For 320x160mm Size Modules
The 640F2 LED display adopts a standard size panel of 320x160mm, which can be easily assembled and maintained even by a novice.
Suitable For 320x160mm Size Modules
The 640F2 LED display adopts a standard size panel of 320x160mm, which can be easily assembled and maintained even by a novice.

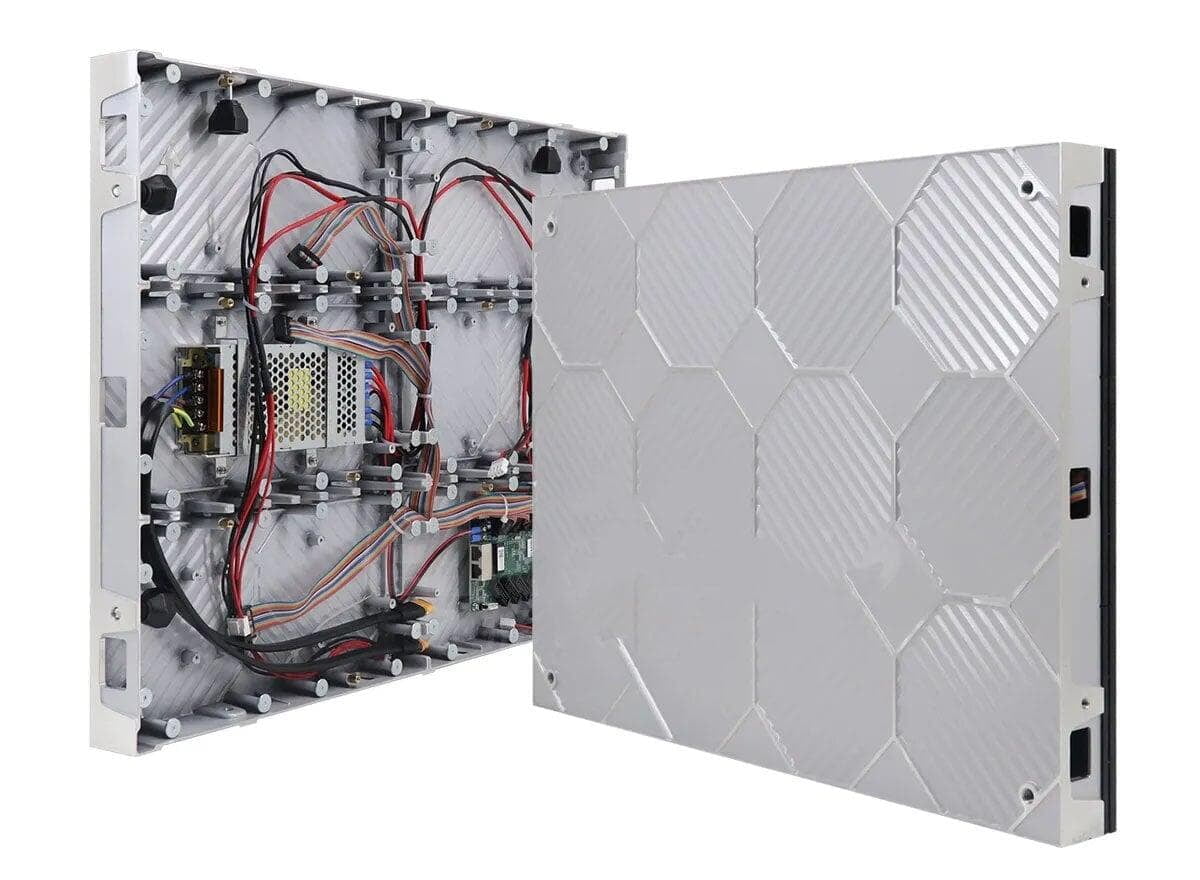

Perfect Structure Design
This cabinet adopts high-standard industry-leading design, and the die-cast aluminum cabinet bottom shell is high-end and atmospheric. Equipped with a quick lock design, the installation and assembly are more convenient.
Perfect Structure Design
This cabinet adopts high-standard industry-leading design, and the die-cast aluminum cabinet bottom shell is high-end and atmospheric. Equipped with a quick lock design, the installation and assembly are more convenient.

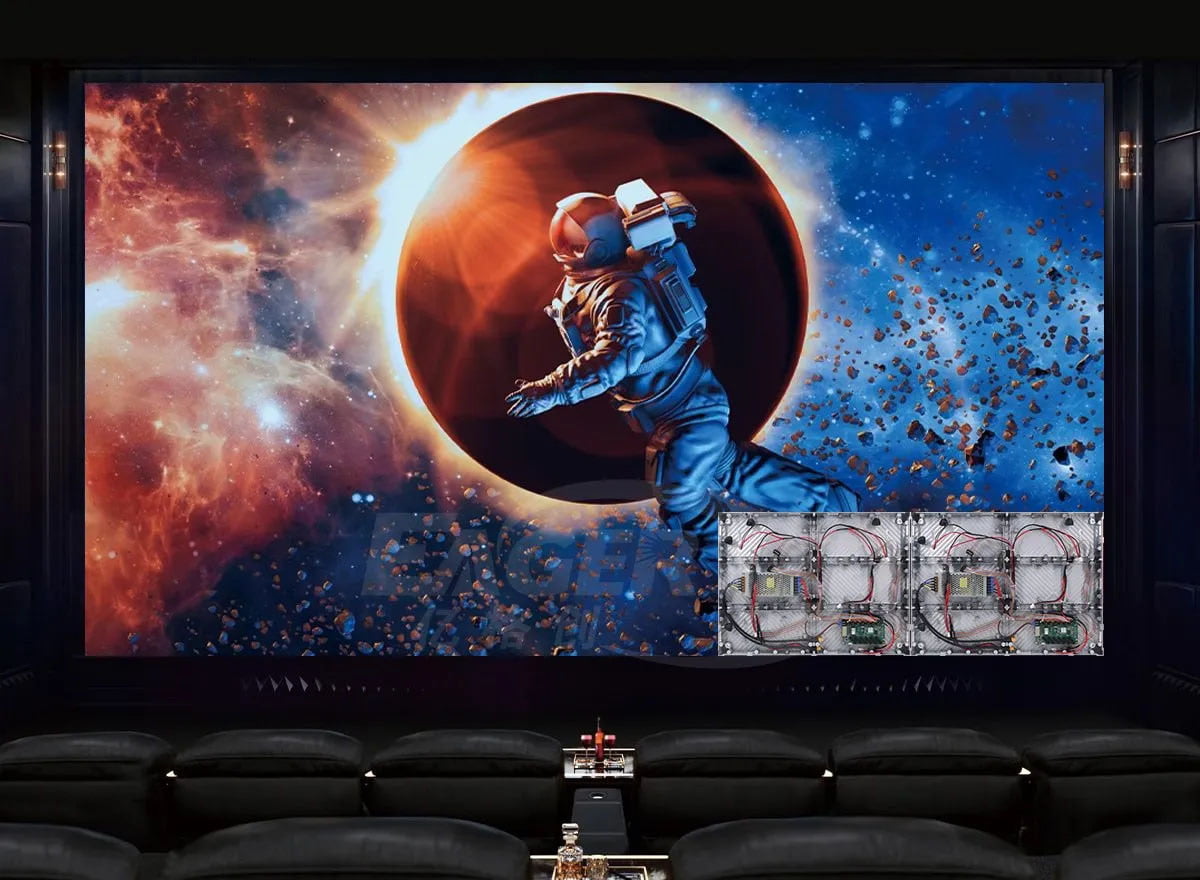

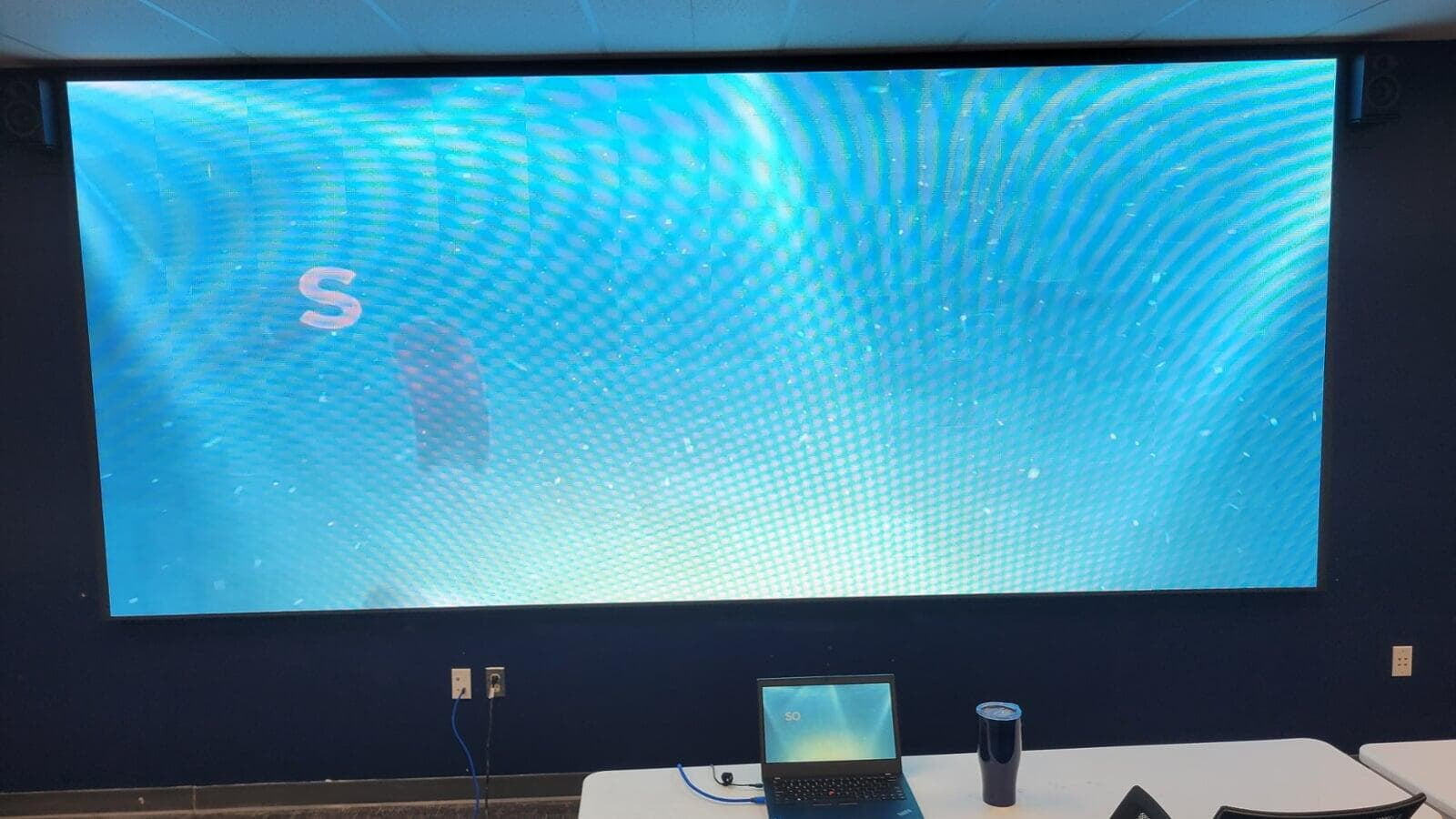

Cinema-like Visual Experience
Seamless splicing design, simple internal wiring, and perfect cabinet splicing. The picture quality is gorgeous, bringing you a movie-like visual experience.
Cinema-like Visual Experience
Seamless splicing design, simple internal wiring, and perfect cabinet splicing. The picture quality is gorgeous, bringing you a movie-like visual experience.

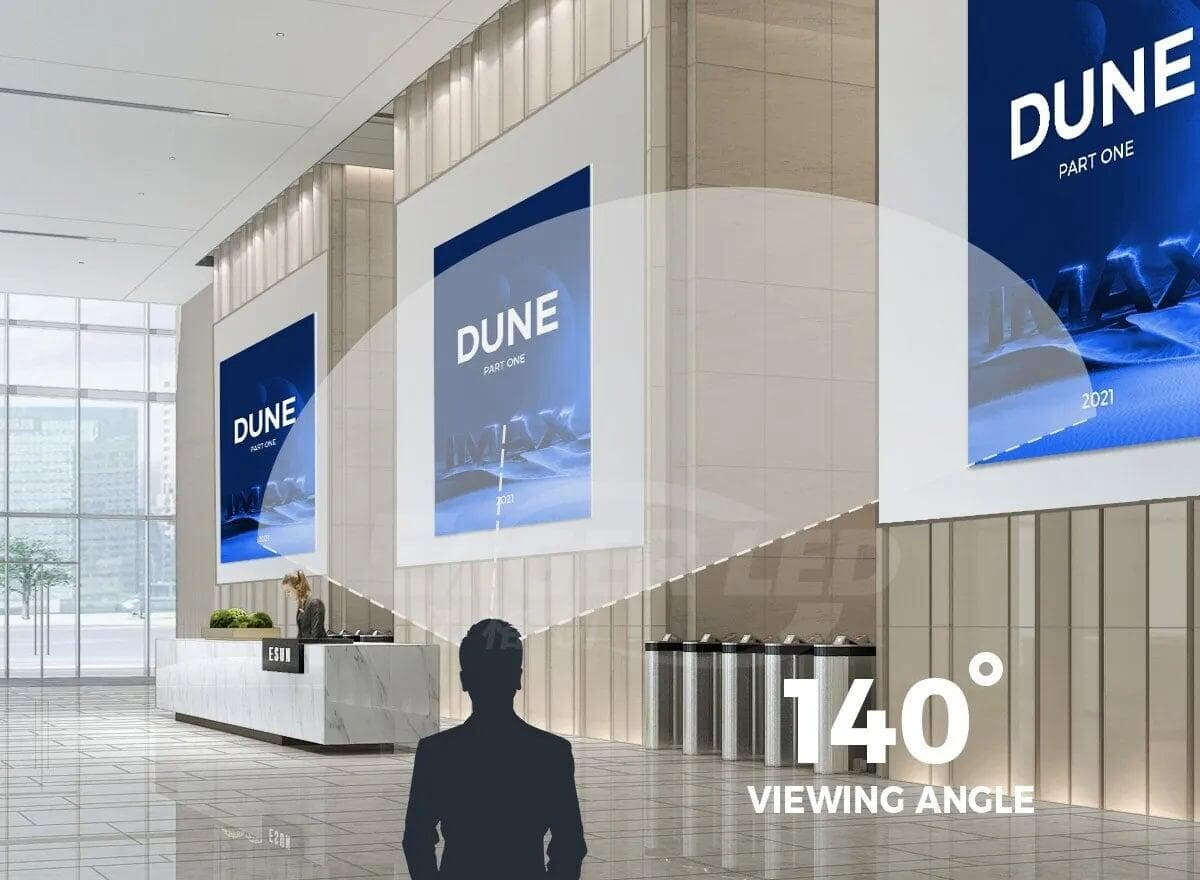

Wide Viewing Angle
Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle. Ultra-wide viewing angle give you the largest screen viewing area.It offers you clear and natural images in all directions.
Wide Viewing Angle
Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle. Ultra-wide viewing angle give you the largest screen viewing area.It offers you clear and natural images in all directions.

Pixel Pitch (mm) | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
Model | EA640F2-P1.25 | EA640F2-P1.53 | EA640F2-P1.86 | EA640F2-P2 | EA640F2-P2.5 |
Pixel Configuration | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD2020 |
Density (Pixels/㎡) | 640,000 | 422,500 | 288,906 | 250,000 | 160,000 |
Module Resolution (Pixel) | 256x128 | 208x104 | 172x86 | 160x80 | 128x64 |
Module Size (mm) | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 |
Driving Mode (Duty) | 1/32 | 1/32 | 1/43 | 1/40 | 1/32 |
Cabinet Size (mm) | 640x480 | 640x480 | 640x480 | 640x480 | 640x480 |
Cabinet Weight (KG) | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
Brightness (CD/㎡) | 600 | 600 | 600 | 700 | 800 |
Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 580 | 580 | 580 | 439 | 457 |
Avg. Power Consumption (W/㎡) | 195 | 195 | 195 | 150 | 153 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | 1,920/3,840 |
Working Temperature (ºC) | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
MTBF(hours) | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 |
Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
