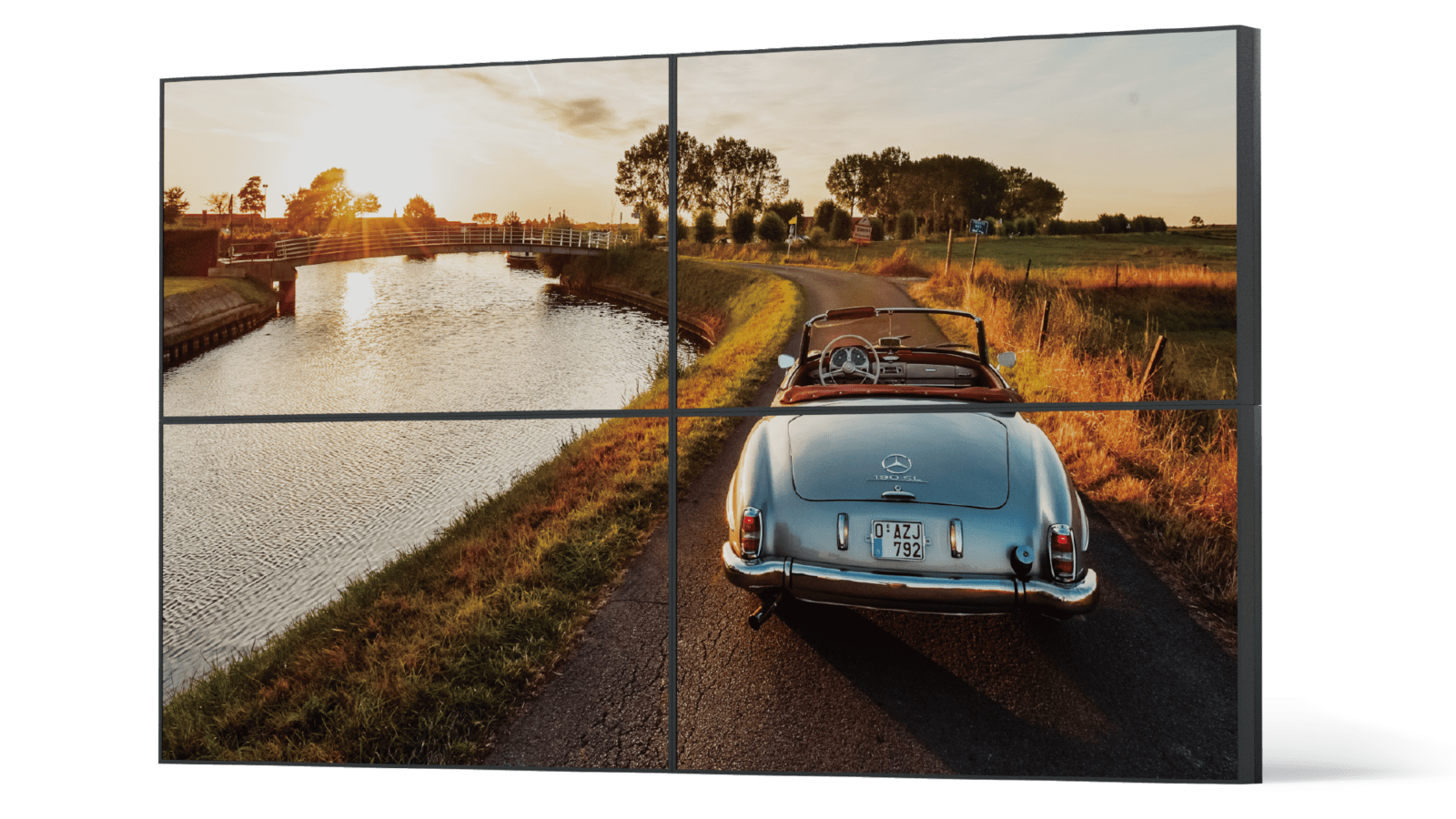

Tecastic's LCD Video Wall solutions offer a comprehensive, all-in-one, and easily configurable solution, perfect for dynamic digital signage, information display, and command & control applications. Our Video Wall panels streamline the implementation, configuration, and operation of your digital signage. These displays support a wide range of connectivity options, including VGA, DVI, HDMI, composite, and RC-232 Serial connectivity for multiple display control. With an ultra-thin bezel of just 4mm, these displays create a nearly seamless appearance for video walls comprising up to 250 displays. Our video wall software enables real-time changes, repositioning, and resizing of content from a single PC or Media Player box. Regardless of where you deploy these screens, rest assured that your message will captivate your audience.
W Series
Panel Specifications
| Model No | 460W | 490W | 550W-3.5 | 550W-1.7 |
|---|---|---|---|---|
| Panel Model | 46 inch TFT-LCD | 49 inch TFT-LCD | 55 inch TFT-LCD | 55 inch TFT-LCD |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 |
| Max Resolution | 1920x1080 | 1920x1080 | 1920x1080 | 1920x1080 |
| Display color | 16.7 M | 16.7 M | 16.7 M | 16.7 M |
| Chroma | 97 % | 97 % | 97 % | 97 % |
| Brightness | 500/700 cd/m2 | 500/700 cd/m2 | 500/700 cd/m2 | 500/700 cd/m2 |
| Brightness Type | LED | LED | LED | LED |
| Seam(mm) / bezel | ≤3.5 mm | ≤1.8 mm ≤3.5 mm | ≤1.8 mm ≤3.5 mm | ≤1.7 mm |
| Contrast | 3000:1 | 3000:1 | 3000:1 | 3000:1 |
| Visual Angle | 178°/178° | 178°/178° | 178°/178° | 178°/178° |
| Response Time | 8 ms | 8 ms | 8 ms | 8 ms |
| Life(hrs) | >50,000(hrs) | >50,000(hrs) | >50,000(hrs) | >50,000(hrs) |
| Dimension (HxWxD) mm Feet/Inches | 579 x 1024 x 122 1.9 ft x 3.36 ft x 4.8 in | 607.8 x 1077.58x109.5 1.99 ft x 3.53 ft x 4.31 in | 682.2 x 1211.4 x 111.7 2.24ft x 3.97 ft x 4.4 in | 682.34 x 1211.54 x 125.3 2.24 ft x 3.97 ft x 4.93 in |
| Color | Matte Black | Matte Black | Matte Black | Matte Black |
| Panel Material | Metal case SPCC | Metal case SPCC | Metal case SPCC | Metal case SPCC |
| installation | Wall-mounted | 2 options | Wall-mounted | 2 options | Wall-mounted | 2 options | Wall-mounted | 2 options |
| Power Consumption | <5 W, ≦220 W | <5 W, ≦220 W | <5 W, ≦220 W | <5 W, ≦220 W |
| Power Supply | AC 100-240 V 50/60 Hz | AC 100-240 V 50/60 Hz | AC 100-240 V 50/60 Hz | AC 100-240 V 50/60 Hz |
| Interface | Input | Output |
|---|---|---|
| DVI | x1 | - |
| HDMI | x1 | - |
| VGA | x1 | - |
| CVBS | x1 | x1 |
| RS232 | x1 | x2 |
| ON/OFF | x1 | - |
